Choose the Width That Fits Your Panel

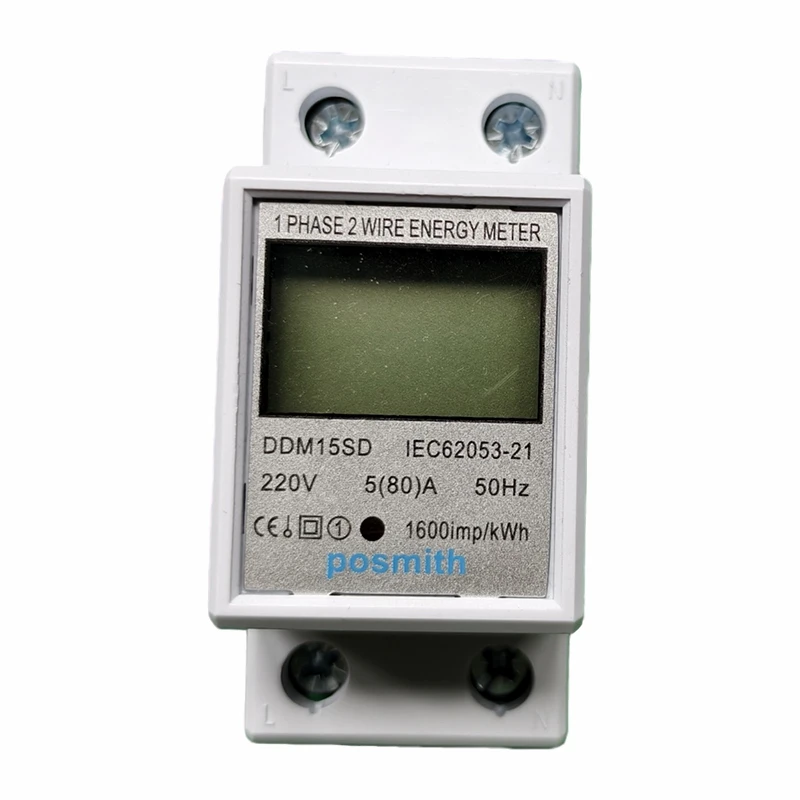

Our Single Phase DIN Rail Energy Meter comes in three widths. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for smart homes, commercial lighting, and small equipment. You can choose 18mm (1P), 35mm (2P), or 75mm (4P). It clips onto a 35mm DIN rail. It sits next to circuit breakers and looks neat. A customer in Italy used this meter for many homes. He told us that with wall-mounted meters, each panel could only hold one or two. With this Single Phase DIN Rail Energy Meter, a panel can hold over ten meters. Space use went up by three times.
Reliable Measurement with Multiple Display Options
This Single Phase DIN Rail Energy Meter meets GB/T17215-2002 and IEC62053. It is accurate to Class 1 or Class 2. It measures single-phase active energy. You can choose a 5+1 digit mechanical counter or a 7-digit LCD display. If you want to connect it to a monitoring system, we can add a pulse output that meets DIN43864. This Single Phase DIN Rail Energy Meter gives you the data you need.
Easy to Install Anywhere
This Single Phase DIN Rail Energy Meter is easy to install. You can clip it on a DIN rail or mount it on a panel. The case is made of fire-resistant material. It works from -25℃ to 55℃. For switchgear makers, panel builders, and smart home integrators who need many single-phase meters, this DIN rail meter is a convenient choice.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
AC220V 50Hz/60Hz |
|
Current Specifications |
5(20)A, 10(40)A, 15(60)A, 20(80)A, 30(100)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Width Options |
1P (18mm), 2P (35mm), 4P (75mm) |
|
Installation |
35mm DIN rail or panel mount |
|
Display |
Mechanical counter or LCD |
