Remote Reading Saves Time and Labor

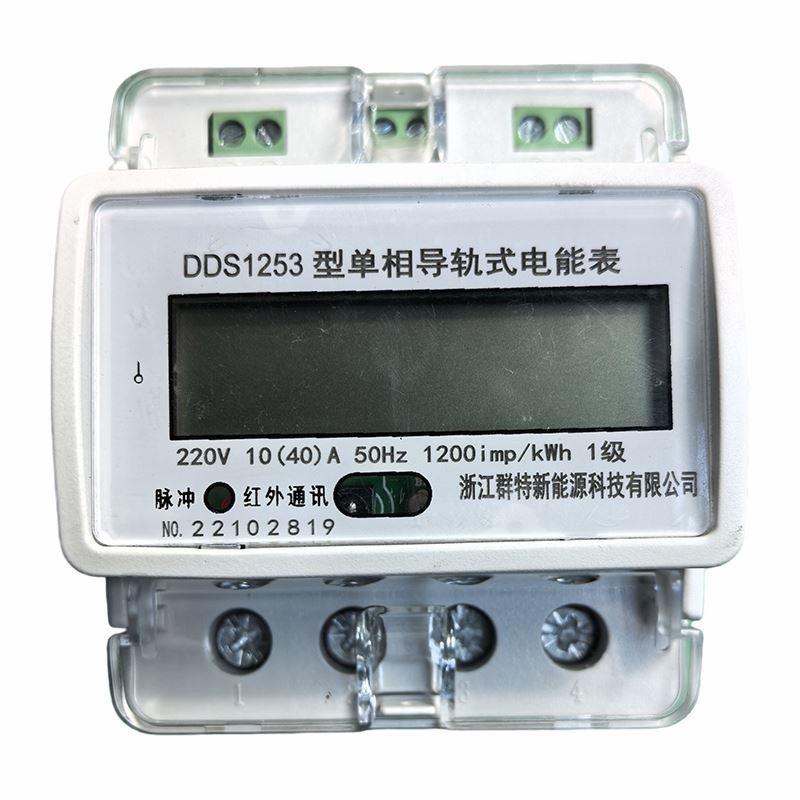

Our prepaid electricity billing meter helps you read power data without walking to each meter. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for property managers and industrial parks. A park in Wenzhou had 800 units. They used to send three workers to read meters. It took all day. Now, with this prepaid electricity billing meter, one person clicks a mouse, and all the data comes to the computer in three minutes. This saves a lot of time and money.
Smart Communication for Easy Integration
This prepaid electricity billing meter has a RS485 port. It supports Modbus and DL/T645 protocols. You can connect many meters together with a simple wire. A data collector brings all the numbers to your system. You can also add wireless modules like 4G, WiFi, or LoRa. The meter measures voltage, current, power, and energy. It can send alarms if there is a problem. It is a smart choice for digital management.
Technical Details for Your Reference
Here are the main specs for this prepaid electricity billing meter. It is built to last and easy to install.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
AC220V 50Hz/60Hz |
|
Current Specifications |
5(20)A, 10(40)A, 15(60)A, 20(80)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Operating Temperature |
-25℃ to +55℃ |
|
Power Consumption |
≤2.0W |
|
Starting Current |
≤0.004Ib |
|
Communication |
RS485, Modbus or DL/T645 |
|
Data Retention |
>10 years after power off |
|
Installation |
35mm DIN rail |
