Two Widths for Different Needs

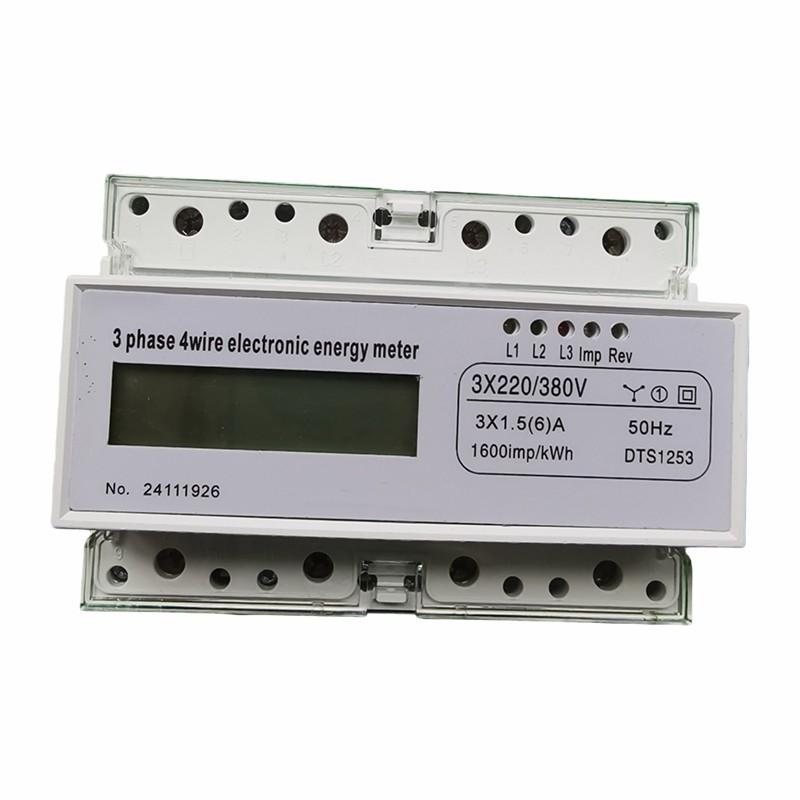

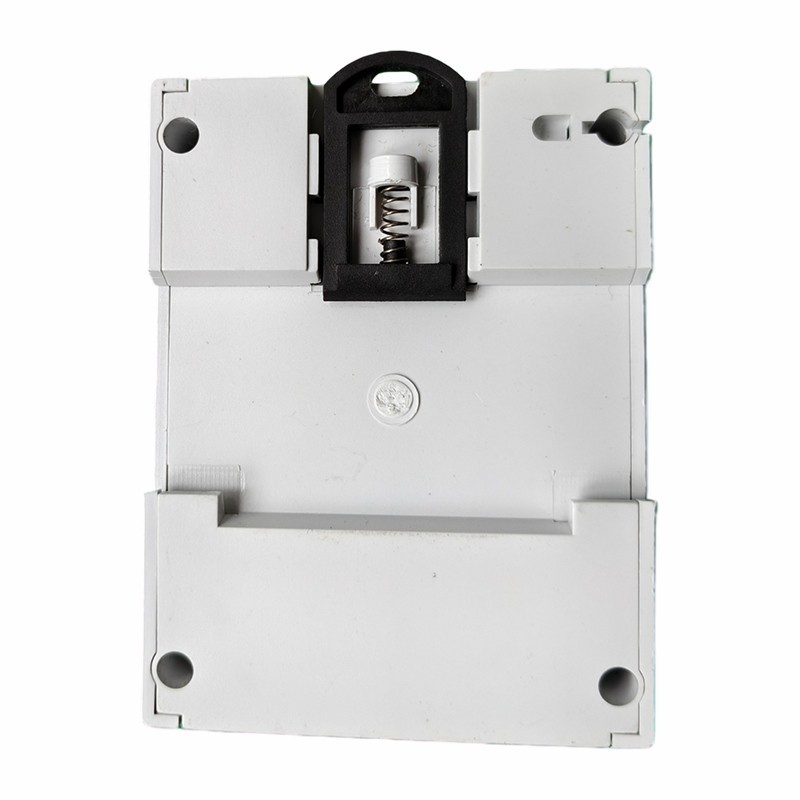

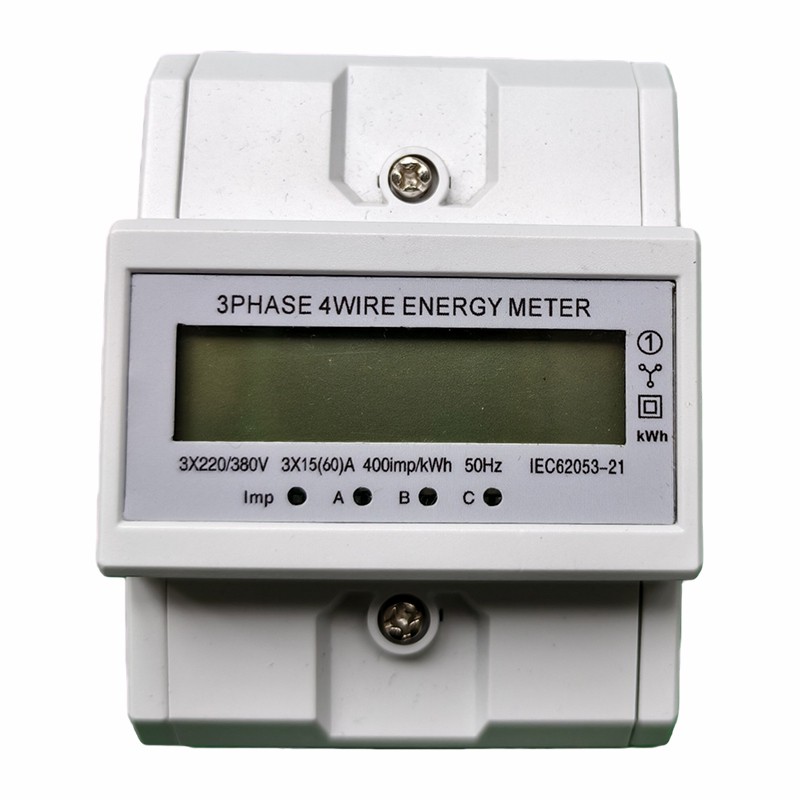

Our Three Phase DIN Rail Energy Meter comes in two widths: 4P (about 70mm) and 7P (about 122mm). We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for industrial control panels, commercial panels, and base stations. It clips onto a 35mm DIN rail. No drilling is needed. A customer in Germany used this meter for a factory upgrade. Their old wall-mounted meters took up a lot of space. After switching to our Three Phase DIN Rail Energy Meter, the panel size went down by 30%. The wiring was much cleaner.
Accurate Measurement for Many Applications
This Three Phase DIN Rail Energy Meter meets GB/T17215-2002 and IEC62053. It is accurate to Class 1 or Class 2. It measures three-phase active energy. You can choose a mechanical counter or LCD display. It comes in many current sizes, from 3×1.5(6)A to 3×30(100)A. This covers most industrial and commercial needs. It uses less than 1.0W per phase. It does not get hot. This Three Phase DIN Rail Energy Meter is reliable and efficient.
Flexible Installation and Pulse Output
This Three Phase DIN Rail Energy Meter can be installed on a DIN rail or mounted on a panel. It has a fire-resistant case. It works from -25℃ to 55℃. It also has a pulse output that meets DIN43864. You can connect it to your energy management system. For switchgear makers, automation integrators, and data centers that need many three-phase meters, this DIN rail meter saves space and makes installation easy.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
3×220V/380V, 3×57.7V/100V, 50Hz/60Hz |
|
Current Specifications |
3×1.5(6)A, 3×5(20)A, 3×10(40)A, 3×15(60)A, 3×20(80)A, 3×30(100)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Width Options |
4P (70mm), 7P (122mm) |
|
Installation |
35mm DIN rail or panel mount |
|
Power Consumption |
≤1.0W per phase |
