Many Functions in One Small Unit

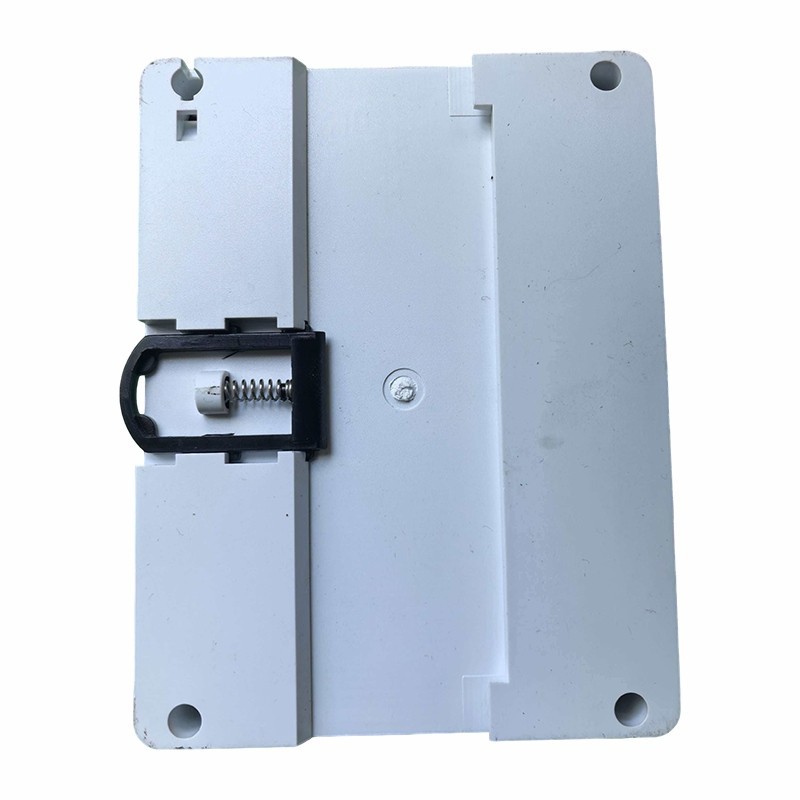

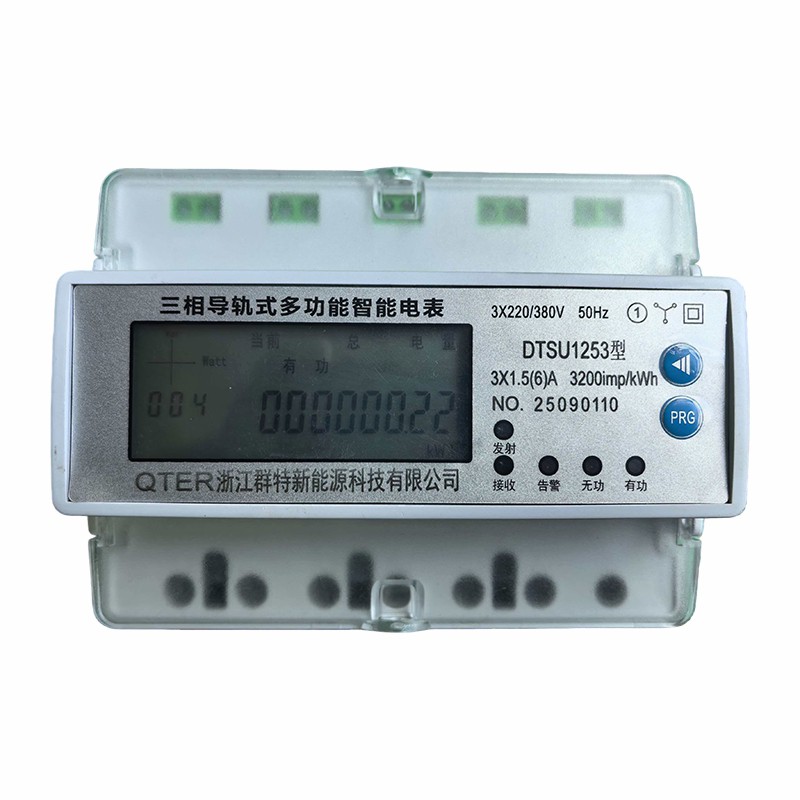

Our din rail 3 phase energy meter gives you many readings in one small box. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for modern buildings. A project manager in Hangzhou told us they needed to check voltage, current, power, and energy for each circuit. But space was very tight. This din rail 3 phase energy meter fits on a 35mm rail. It shows everything on the screen. You can see each phase's data. No need for extra tools.
Smart Data for Better Management
This din rail 3 phase energy meter does more than just count power. It measures voltage, current, power factor, active power, reactive power, and even frequency. It has a RS485 port. You can connect it to your building management system. This helps you watch your power use from a computer. We test each meter in our Yueqing factory for 48 hours. It works from -25℃ to 55℃. It uses less than 1.0W per phase. It is reliable and smart.
Technical Details for Your Project
Here are the key numbers for this din rail 3 phase energy meter. It is easy to install and gives you full data.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
3×220V/380V, 3×57.7V/100V, 50Hz/60Hz |
|
Current Specifications |
3×1.5(6)A, 3×5(20)A, 3×10(40)A, 3×15(60)A, 3×20(80)A, 3×30(100)A |
|
Accuracy Class |
Active: 0.5S, 1.0; Reactive: 1.0, 2.0 |
|
Operating Temperature |
-25℃ to +55℃ |
|
Power Consumption |
≤1.0W per phase |
|
Starting Current |
≤0.004Ib |
|
Installation |
35mm DIN rail |
|
Communication |
RS485, Modbus or DL/T645 |
