Prepaid Power in a Space-Saving Design

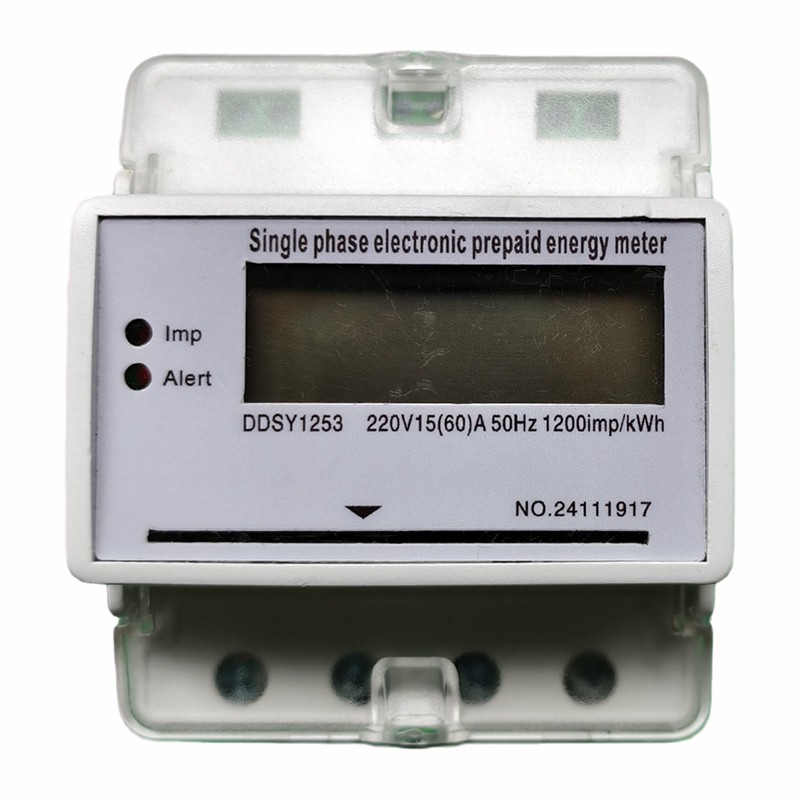

Our DIN Rail Prepaid Electronic Energy Meter puts prepaid control into a small rail-mounted unit. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this for apartments and dormitories. A university in China had a problem: students moved out with unpaid bills. With this DIN Rail Prepaid Electronic Energy Meter, students pay before they use. When credit runs out, the meter cuts the power. The university told us their collection rate went to 100%. No more chasing late payments.
Built with a Strong Relay for Reliable Control
Inside this DIN Rail Prepaid Electronic Energy Meter, there is a strong magnetic latching relay. We test each relay in our Yueqing factory. It can handle up to 80A and lasts over 100,000 switches. It is safe and reliable. The meter works from -25℃ to 55℃. It saves data for over 10 years if the power goes out. You can use IC cards for payment, or connect it to a remote system with RS485. It gives you full control over who uses power.
Technical Details for Easy Setup
Here are the key specs for this DIN Rail Prepaid Electronic Energy Meter. Choose the right current size for your units.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
AC220V 50Hz/60Hz |
|
Current Specifications |
5(20)A, 10(40)A, 15(60)A, 20(80)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Operating Temperature |
-25℃ to +55℃ |
|
Power Consumption |
≤2.0W |
|
Starting Current |
≤0.004Ib |
|
Data Retention |
>10 years after power off |
|
Installation |

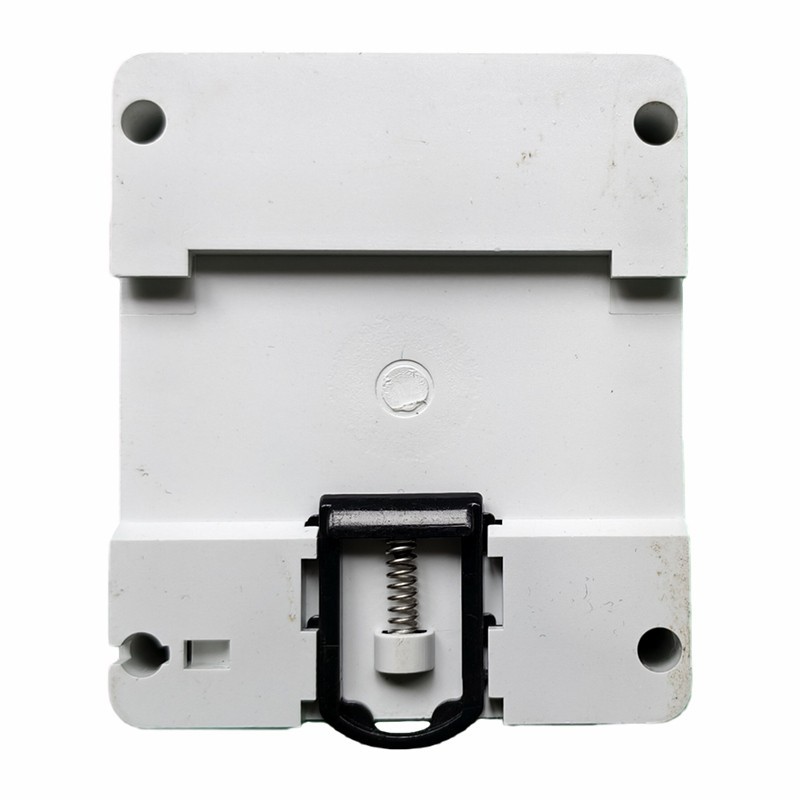

35mm DIN rail |
|
Payment |
IC card or remote |
