Wireless Data for Hard-to-Reach Places

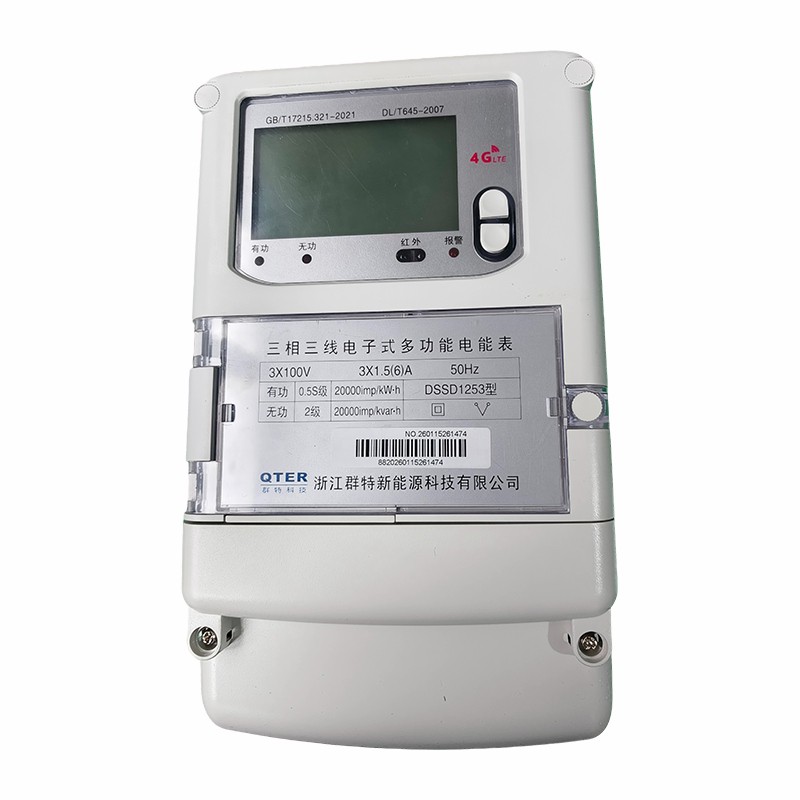

Our 3 Phase Energy Meter WiFi solves the problem of wired communication. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we built this meter for base stations, remote areas, and temporary power sites. It has a built-in 4G module. Just insert a SIM card, and it connects to the network. No communication wires are needed. A customer in Xinjiang used this meter for oil field pumps. Before, workers drove tens of kilometers to read meters. Now, they sit in the office and watch real-time usage and status for each pump. This saved a lot of time and money.
Accurate Measurement with Full Data
This 3 Phase Energy Meter WiFi uses a good three-phase chip. It is accurate to Class 1 or Class 2. It measures three-phase voltage, current, active power, reactive power, power factor, and frequency. It sends this data to the platform through the 4G network. It also measures forward and reverse active energy. It supports time-of-use rates and step tariffs. This 3 Phase Energy Meter WiFi gives you all the data you need.
Remote Control and Anti-Tamper
Through our platform, you can read real-time data, change settings, and even turn power on or off from far away. This 3 Phase Energy Meter WiFi detects if the cover is opened or if a magnet is used. It reports these events. Data is saved for over 10 years. For remote sites like base stations, oil fields, solar farms, charging stations, and temporary sites, this meter is a great solution.
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
3×220V/380V, 50Hz/60Hz |
|
Current Specifications |
3×1.5(6)A, 3×5(20)A, 3×10(40)A, 3×15(60)A, 3×20(80)A, 3×30(100)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Communication |
4G, with SIM card slot |
|
Data Retention |
>10 years after power off |
|
Anti-tamper |
Cover open detection, magnetic detection |
