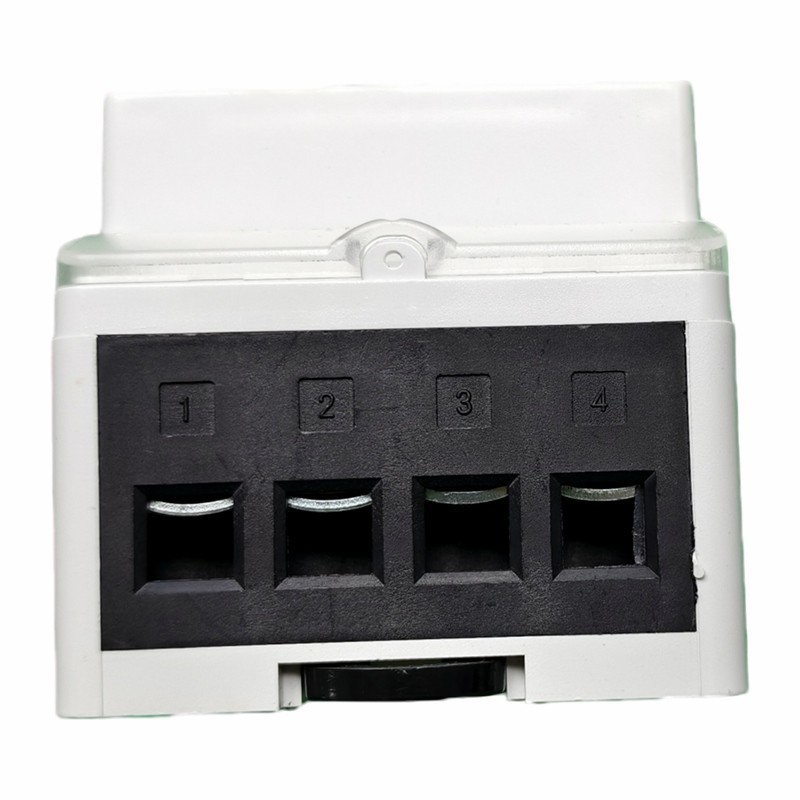

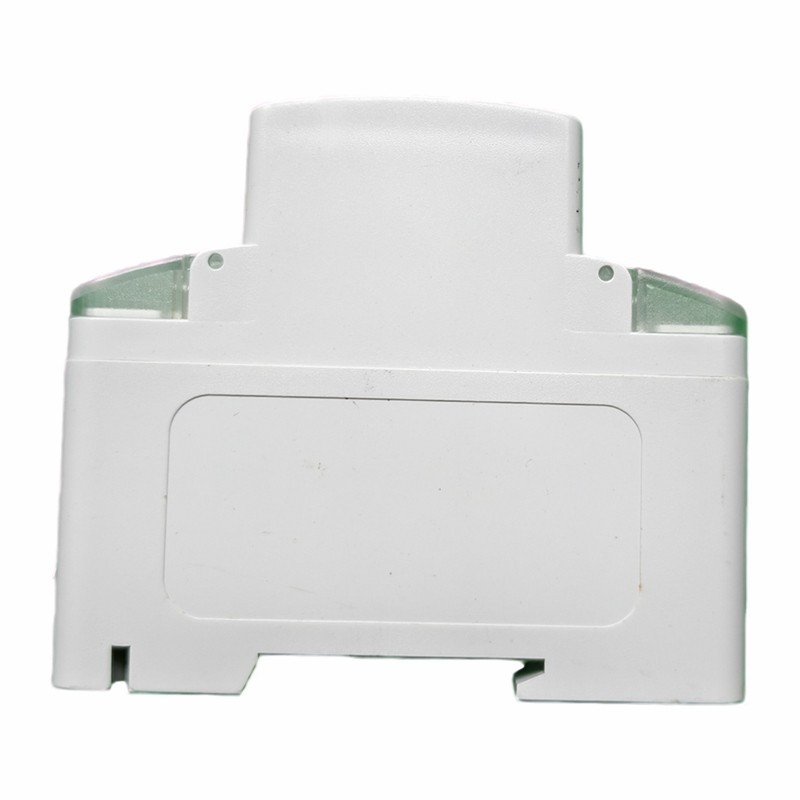

DIN Rail Prepaid Energy Meter

Our DIN Rail Single Phase Prepaid Energy Meter is made for places with limited space. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we built this meter to fit on a 35mm DIN rail. It clips on like a circuit breaker. No need for extra holes or mounting plates. A customer in Shanghai managed a 200-room apartment building. Their old wall-mounted meters took up too much space. After switching to our DIN Rail Single Phase Prepaid Energy Meter, the panel size was cut in half. The meters lined up neatly and looked clean.
Send Inquiry
Description

Saves Space in Tight Panels

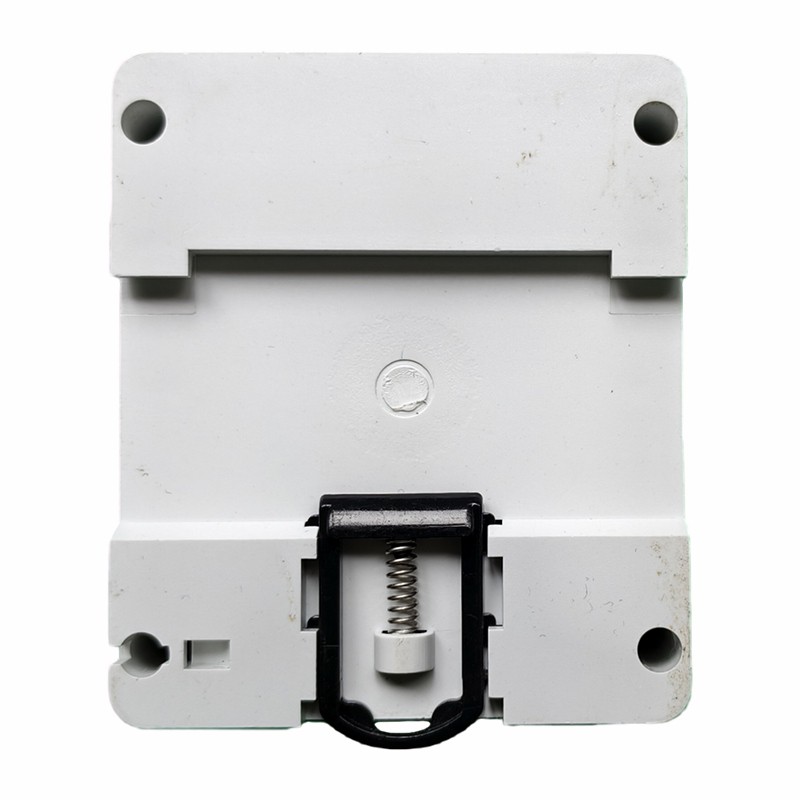

Our DIN Rail Single Phase Prepaid Energy Meter is made for places with limited space. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we built this meter to fit on a 35mm DIN rail. It clips on like a circuit breaker. No need for extra holes or mounting plates. A customer in Shanghai managed a 200-room apartment building. Their old wall-mounted meters took up too much space. After switching to our DIN Rail Single Phase Prepaid Energy Meter, the panel size was cut in half. The meters lined up neatly and looked clean.

20260201071734488359



Prepaid Function in a Small Package



This DIN Rail Single Phase Prepaid Energy Meter has a magnetic latching relay inside. It cuts power when credit runs out. Users pay before they use. It works with IC cards or remote prepaid systems. Each meter has its own card with dynamic encryption. The LCD screen shows remaining credit and total usage. It is accurate to Class 1 or Class 2. We use SMT automatic welding in our factory to make sure it is reliable.

20260201071732487359


Helpful Features for Easy Management



This DIN Rail Single Phase Prepaid Energy Meter lets you set an overdraft amount. This prevents sudden power cuts. When credit is low, it alarms. It also has overload protection. If power goes above the set limit, it cuts power to protect the wires. It detects if someone opens the cover. Data is saved for over 10 years. For property managers and schools that need many prepaid meters, this DIN rail meter saves space and makes management easy.

20260201071729485359


Technical Specifications



Parameter

Specification

Rated Voltage

AC220V 50Hz/60Hz

Current Specifications

5(20)A, 10(40)A, 15(60)A, 20(80)A

Accuracy Class

Class 1, Class 2

Installation

35mm DIN rail

Payment

IC card or remote

Data Retention

>10 years after power off
