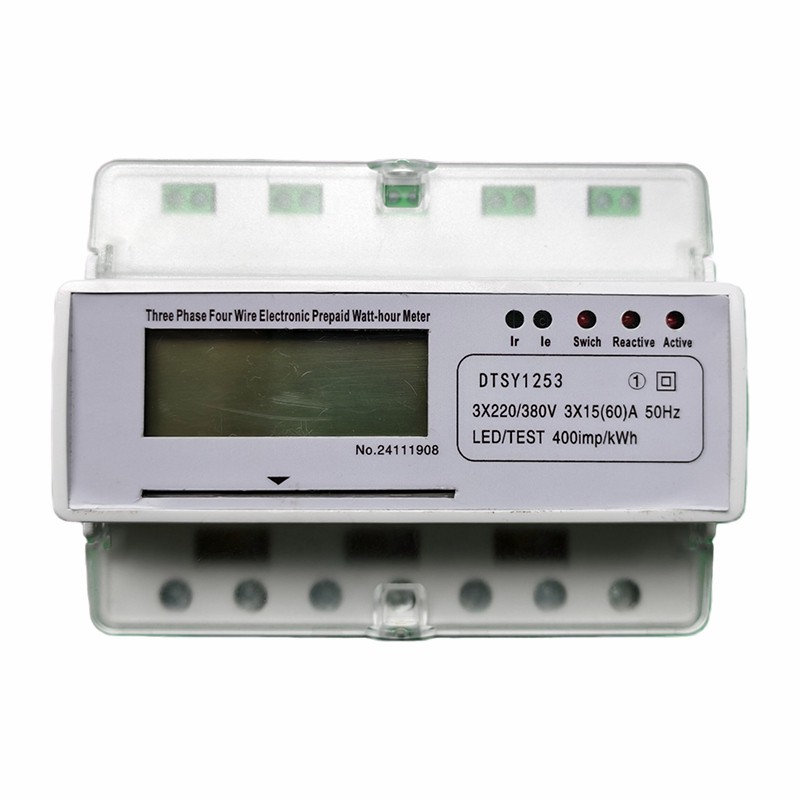

3 Phase Prepaid Electricity Meters

Our DIN Rail Three Phase Prepaid Energy Meter brings prepaid control to three-phase power in a space-saving package. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for industrial parks, commercial buildings, and school canteens. It clips onto a 35mm DIN rail. A customer in Jiangsu ran a technology park. Their old wall-mounted meters took up too much space. After switching to our DIN Rail Three Phase Prepaid Energy Meter, all meters fit neatly inside the panel. It looked clean and was much safer.
Send Inquiry
Description

Three-Phase Prepaid in a Compact Design

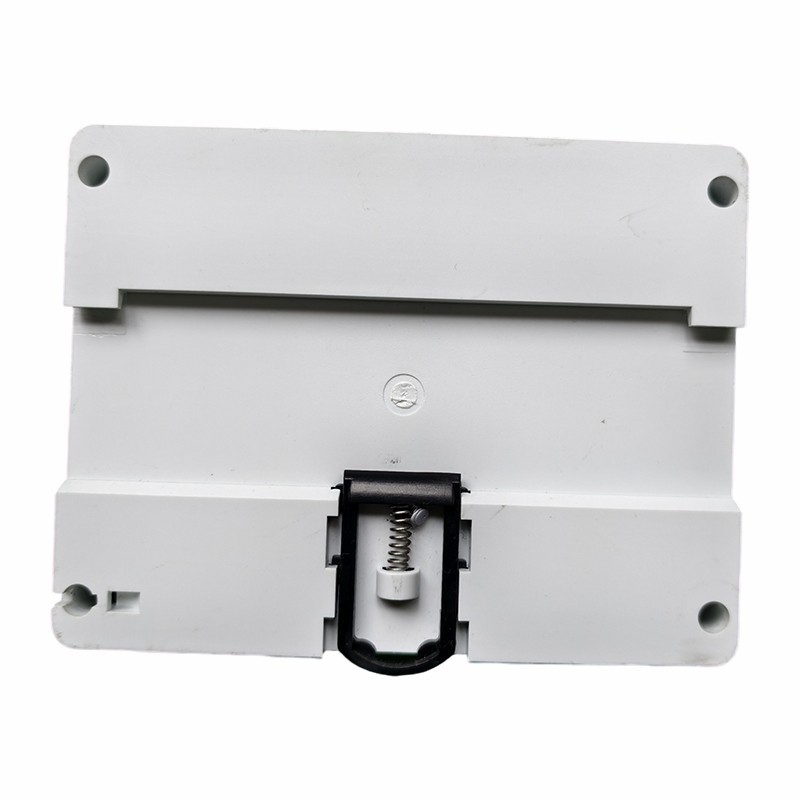

Our DIN Rail Three Phase Prepaid Energy Meter brings prepaid control to three-phase power in a space-saving package. We are Zhejiang Qunte New Energy Technology Co., Ltd., and we made this meter for industrial parks, commercial buildings, and school canteens. It clips onto a 35mm DIN rail. A customer in Jiangsu ran a technology park. Their old wall-mounted meters took up too much space. After switching to our DIN Rail Three Phase Prepaid Energy Meter, all meters fit neatly inside the panel. It looked clean and was much safer.

20260201071728484359



Reliable Measurement with Strong Relay



This DIN Rail Three Phase Prepaid Energy Meter uses a good three-phase chip and high-accuracy current transformers. It is accurate to Class 1 or Class 2. It has a magnetic latching relay that controls the three-phase circuit. It works even if one phase loses power. It runs on any phase that still has power. This stops data loss. It uses less than 1.0W per phase. It works from -25℃ to 55℃. Data is saved for over 10 years.

20260201071726483359


Smart Features for Easy Management



This DIN Rail Three Phase Prepaid Energy Meter works with IC cards or remote prepaid systems. Each meter has its own card with dynamic encryption. The LCD screen shows remaining credit, total usage, and three-phase voltage and current. It detects if the cover is opened or if a magnet is used. You can set an overdraft amount and an alarm level. For anyone managing three-phase power in tight spaces, this DIN rail meter is a great solution.

20260201071724482359


Technical Specifications



Parameter

Specification

Rated Voltage

3×220V/380V, 50Hz/60Hz

Current Specifications

3×1.5(6)A, 3×5(20)A, 3×10(40)A, 3×15(60)A, 3×20(80)A, 3×30(100)A

Accuracy Class

Class 1, Class 2

Installation

35mm DIN rail

Power Consumption

≤1.0W per phase

Data Retention

>10 years after power off
