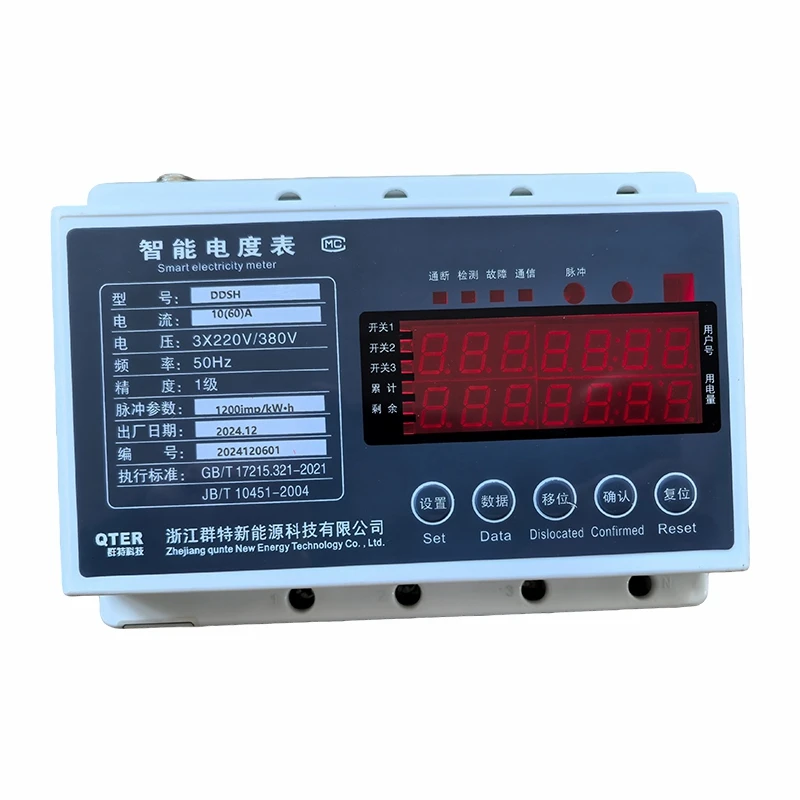

One Meter That Serves Many Rooms at Once
Hello, we are Zhejiang Qunte New Energy Technology Co., Ltd. When we worked on village renovation projects in China and student apartment buildings in Africa, we heard the same problem over and over. People had to install dozens of meters in one building. This made the meter boxes huge and the wiring looked like a spider web. To fix this, our engineers created the Multi Circuit Single Phase Energy Meter. It is a smart way to solve a big space problem.
Every Room Gets Its Own Private Power Tracker
This meter is like an "all-in-one" solution. It puts several separate single phase metering units into one box using a modular design. On our production line in Yueqing, we give each unit its own high-precision current transformer and a special metering chip. This means every user's power reading is correct and does not affect the others. It is like giving each room in an apartment building its own personal manager to track the power use. With the Multi Circuit Single Phase Energy Meter, every tenant's data stays private and correct.
Save Space and End Arguments Over Bills
This meter is made to make life easier for property managers and landlords. Imagine you have a rental building. You no longer need to fight with tenants over how to split the electric bill. The power use for every user is shown clearly. You can check it one by one on the central LCD screen, or connect it to your computer or phone using the RS485 port. This lets you read all the meters from one place. It saves you time and stops arguments about manual reading. One apartment group in Zhejiang told us that after using our Multi Circuit Single Phase Energy Meter, they saved 60% of the space in their meter room and got their money back faster because the data was clear for everyone to see.
Technical Specifications
|
Parameter |
Details |
|
Rated Voltage |
AC220V 50Hz/60Hz |
|
Specifications (Per Unit) |
5(20)A, 10(40)A, 15(60)A |
|
Accuracy Class |
Class 1, Class 2 |
|
Operating Temperature |
-25℃ to 55℃ |
|
Power Consumption |
≤1.0W / Per Unit |
|
Starting Current |
≤0.004Ib |
|
Data Retention |
>10 Years (when power is off) |
|
Standard |
GB/T17215-2002 |
